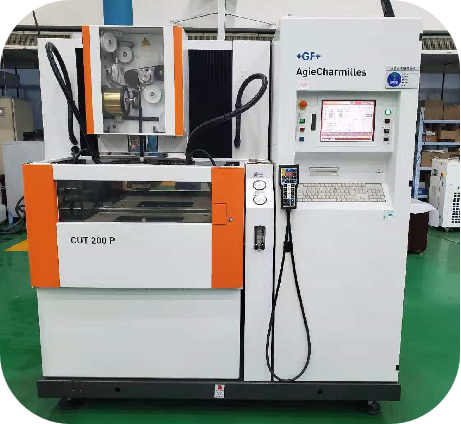

瑞士GF精密五軸四聯動數控慢走絲線切割機 CUT200P
Swiss GF Precision five-axis four-link CNC slow wire cutting machine CUT200P

XYZ三軸工作行程XYZ triple-axis working stroke: 350 x 220 x 220 mm
UVt錐度行程UVt taper stroke: 350 x 220 mm
五軸光柵尺，雙閉環Five-axis grating ruler, double closed loop
光柵尺分辨率Scale resolution: 0.0005mm 50nm(納米)
XYUVZ5軸防撞保護 XYUVZ5 axis anti-collision protection
臺面尺寸Table size: 680x450 x75mm
最大工件尺寸Maximum workpiece size: 1000 x 550 x 220 mm
機床外形尺寸(寬x深x高): 2030 x 2201x2000mm
Machine dimensions (width x depth x height):2030 x 2201x2000mm
最大承重工件Maximum load-bearing workpiece: 750 kg
最大錐度Maximum taper: ±30° /220 mm
標準最高加工速度Standard maximum processing speed: 340 mm2/min
最佳表面粗糙度Optimum surface roughness: 0.1μm R

瑞士GF阿奇夏米爾集團是世界頂級電火花設備制造商，該集團在高速銳削、電火花加工領域有看獨特的優勢，其產品以高精度、高穩定性著稱。Swiss GF AgieCharmilles Group is the world's top EDM equipment manufacturer. The group has unique advantages in high-speed sharp cutting and EDM processing. Its products is well known for high accuracy and stability.
